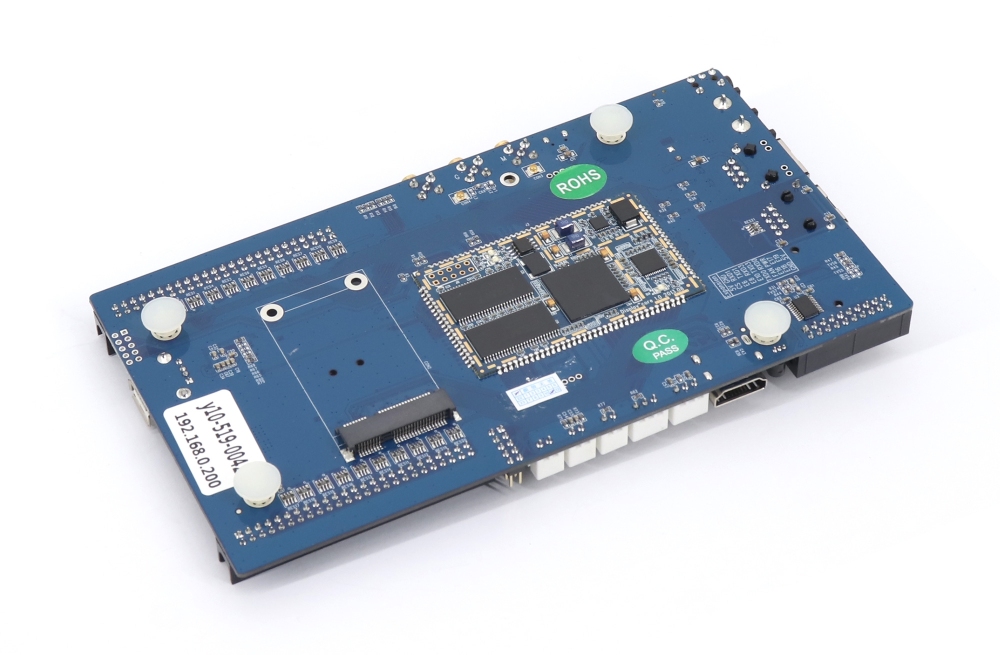

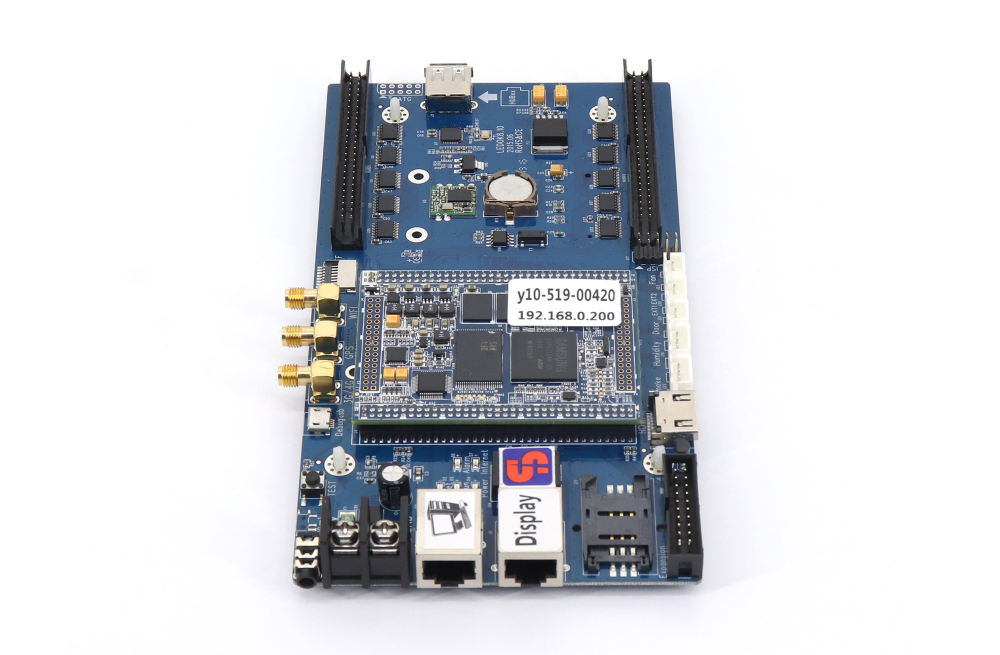

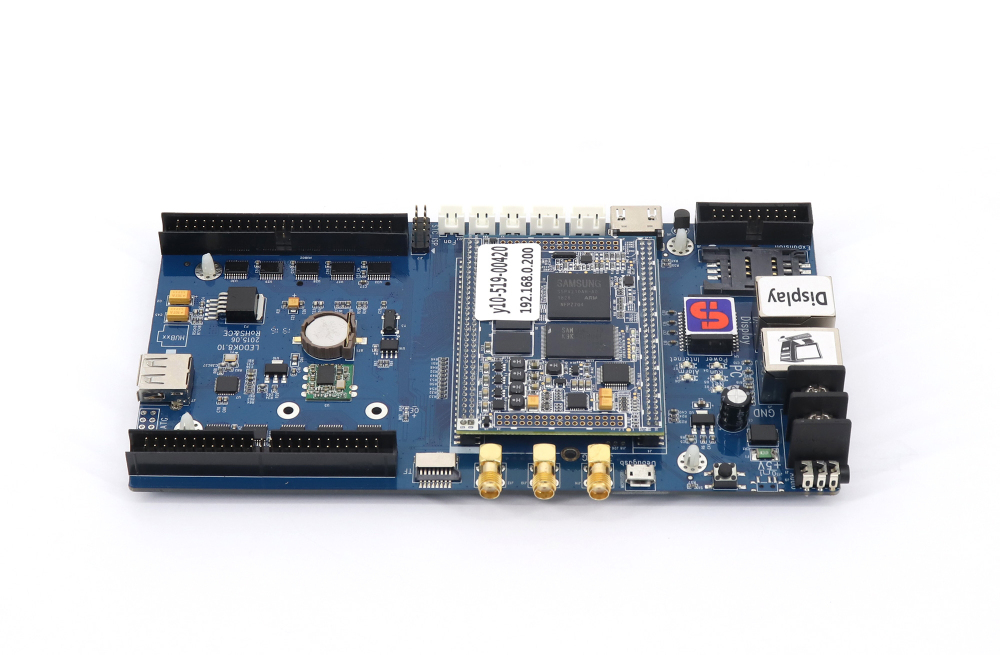

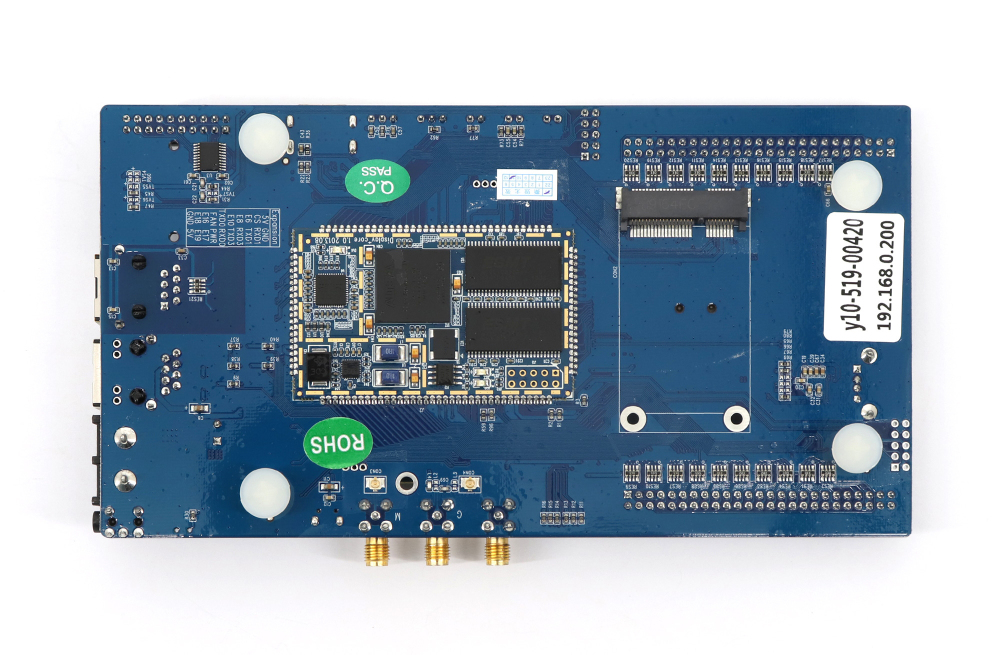

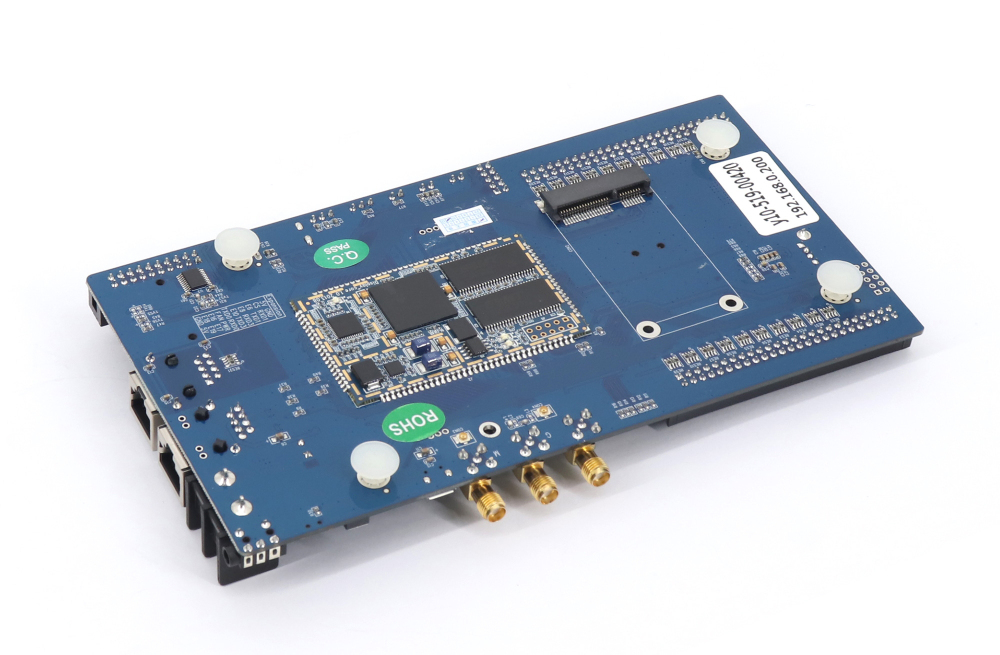

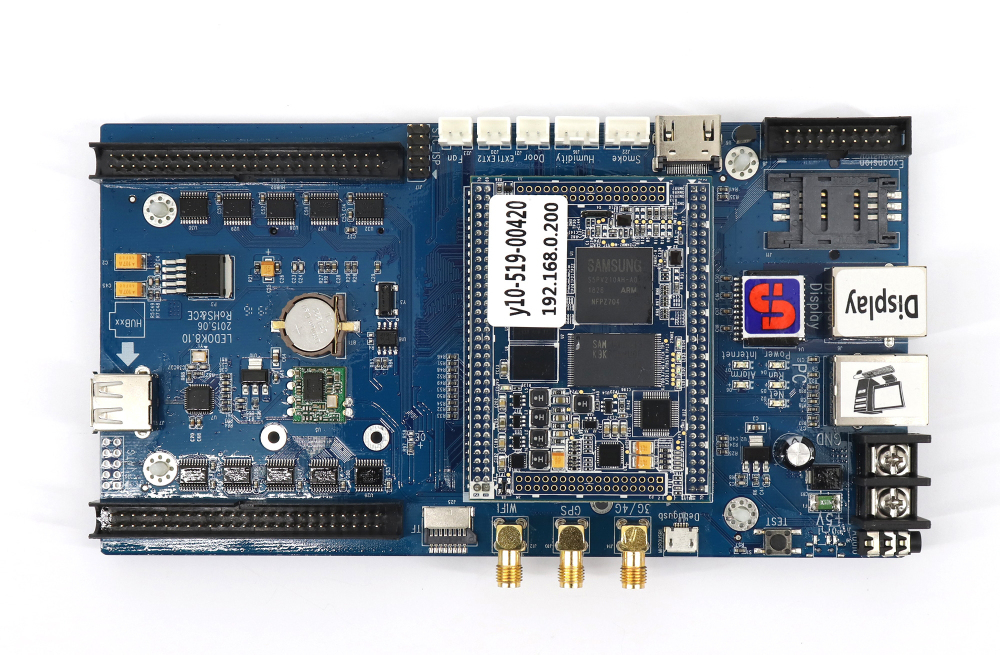

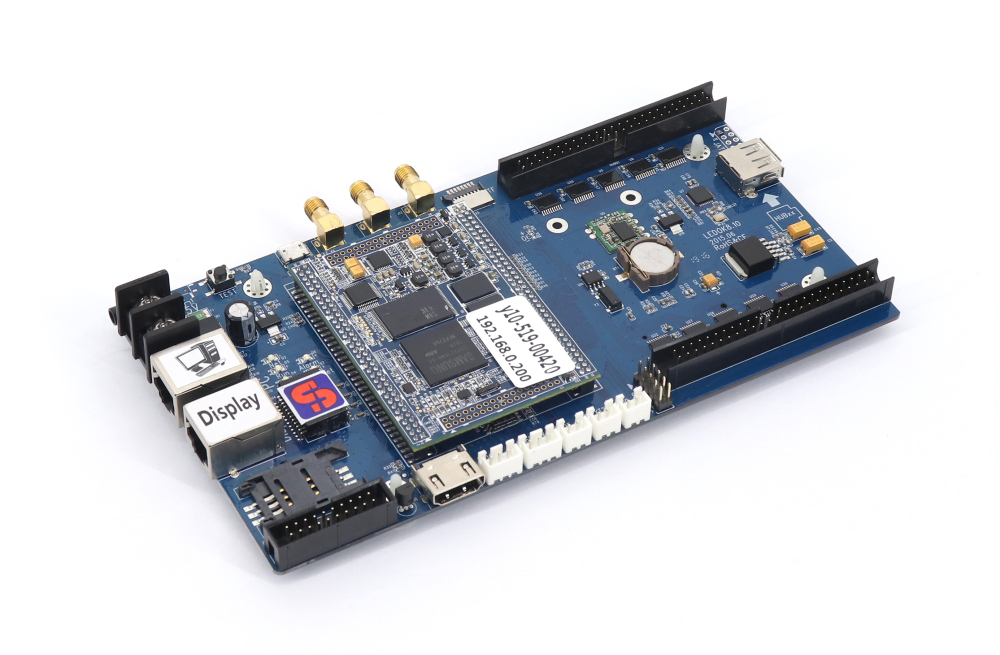

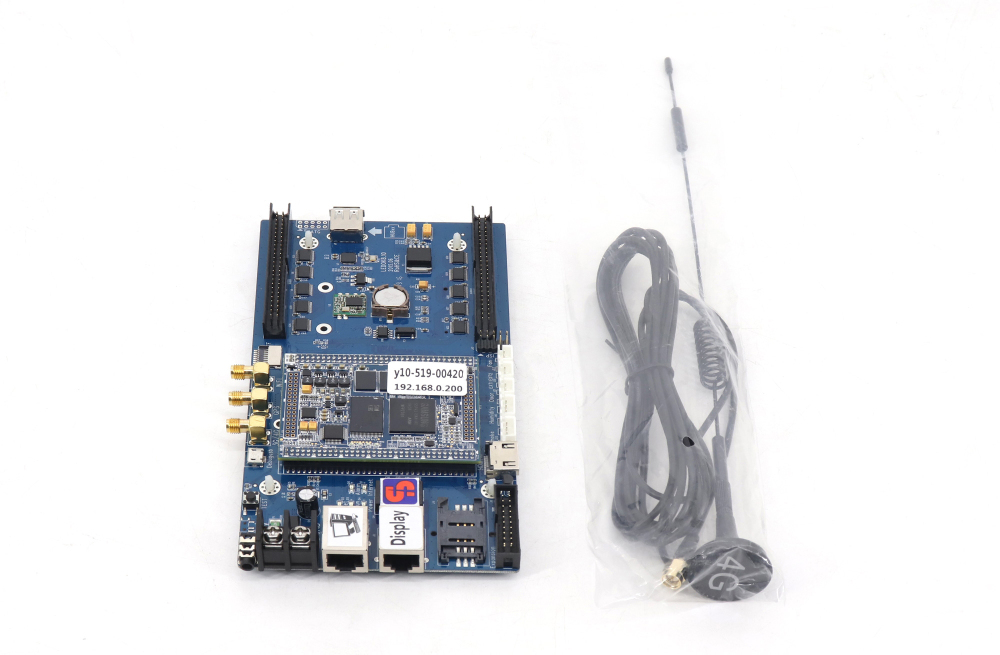

XIXUN Y10 Asynchronous Android LED Controller Card
2) Video hardware decoding;
3) Supporting PCI-E 3G modem;
4) WIFI modem on board;
5) Supporting maximum 1280×512 pixels;
6) Supporting HDMI audio and video outputs;
Features of XIXUN Y10 Asynchronous Android LED Controller Card:
1) Supporting non-linear editing;
2) Video hardware decoding;
3) Supporting PCI-E 3G modem;
4) WIFI modem on board;
5) Supporting maximum 1280×512 pixels;
6) Supporting HDMI audio and video outputs;
7) Fast communicate rate, totally solve the 3G communication bottle-neck, Packet Switched Domain (PS for short) bearer service under WCDMA mode: maximum rate is 384Kbit/s; HSDPA Max 14.4
Mbps(DL)/Max 5.76Mbps(UL); UMTS Max 384Kbps;
8) Supporting continue transfer from breakpoint, adopting database warehouse management for onboard program so that
could reduce dataflow extremely and optimize storage space;
9) Supporting to connect receiving cards, refresh rate will self adapt to screen resolution, adjust brightness to realize better
display effect;
10) Possessing strong software—-web-base multi-media publishing system (AIPS), so that could manage all terminals, edit and publish program.
Parameters of XIXUN Y10 Asynchronous Android LED Controller Card:
|
Technical parameters/ controller type |
Android controller Y10 |
|
Type |
Y10 |
|
Onboard operation system |
Android |
|
Communication type |
Wire, WIFI, 3G wireless |
|
Maximum pixels |
1280×512(full color) |
|
HUB |
2 pieces of HUB via expansion boards |
|
Flash onboard |
512MB |
|
Expand storage |
Expand to 4G via TF card |
|
Maximum gray level |
4096 |
|
audio |
YES |
|
Sensor |
Temperature and moisture, brightness auto adjust, exchange program via infrared remote |
|
HDMI outputs |
YES |
|
Non-linear editing |
YES |
|
Refresh rate |
>4KHZ |
|
Brightness loss |
<10% |
