· Digital video decoder
· Seven selectable vidoe sources directly from the front panel. including:
computer VGA, component video (SD orHDTV), S-video or composite video. · Two video outputs : (1) VGA and (1) DVI
· Adjustation and conversion of user-defined Aspect Ratio
· Adjustation of video (NTSC, PAL) Brightness, Contrast
· Value of user-defined Gamma from -1,2 to +1,6
· PIP – Picture-in-picture
· Image crop y zoom
· Freezing of the picture
· Multiple Preset modes.
· 10 bits processing
· Window size and position of PIP LED and user-defined from the front panel.
· Audio switching is synchronized with the video source.
· Card insertion slot LED transmission.
· USB, Ethernet (TCP/IP) and RS-232 real-time control.
· Optional input card:Input (1)- HD-SD SDI

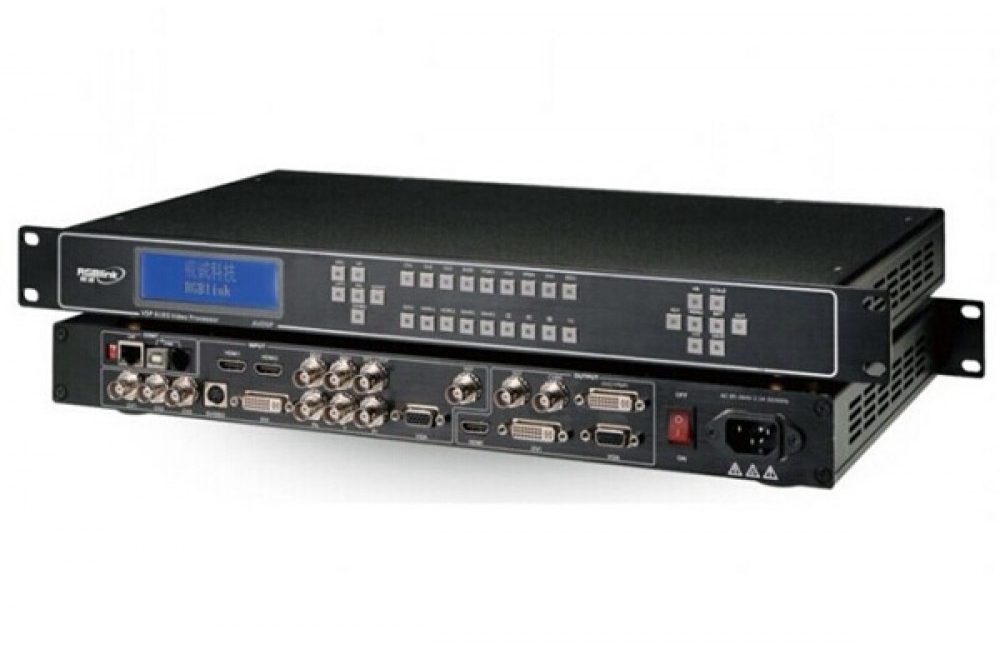

Specifications of RGBLink VSP516S LED Video Processor:

Input
Audio input	5 channels on RCA connector
Scaled channel input	· Analog Input(6): computer videoVGA,video YPbPr (SD or HD), S-video or composite video on conector BNC · Input DVI(1): per SMPTE 625/25, compatible with HDMI 1.3
Scaler input resolutions	·PAL/NTSC; 480i,576i ·Computer resolution: 1024×768×60, 800×600×60, 640×480×60 ·Resoluciones HDTV up to 720p, 1080i, 1080p@50
Output
Audio Output	1 canal en 1/4’’ connector
Digital Output	·VGA en conectores de 15 clavijas·DVI digital en conector DVI-I
Output Resolutions	·Resoluciones de VGA (VESA) 800X600×60Hz 1024×768×60Hz， 1280×1024×60Hz ·Resoluciones de DVI (VESA): 800×600×60Hz，1024×768×60Hz， 1280×1024×60Hz,
User Control
Front Panel Control	LED panel, keyboard y LED lighted push button
Remote Control	The unit may be controlled from a computer or external controller through LAN (TCP/IP), serial RS-232 or USB.
General	· Height:1.7″ (4,4 cm) · Length:17″ (43,0 cm) or 19″ (48,3 cm) · Width: 11.9″ (30.3 cm) · Weight:2,5 kg. · Shipping weight:4,5 kg.
Power	85-264V 2A IEC-3
Environment	Temperature:0-40 grades C; Humidity: 10-90%
Warranty	One year
