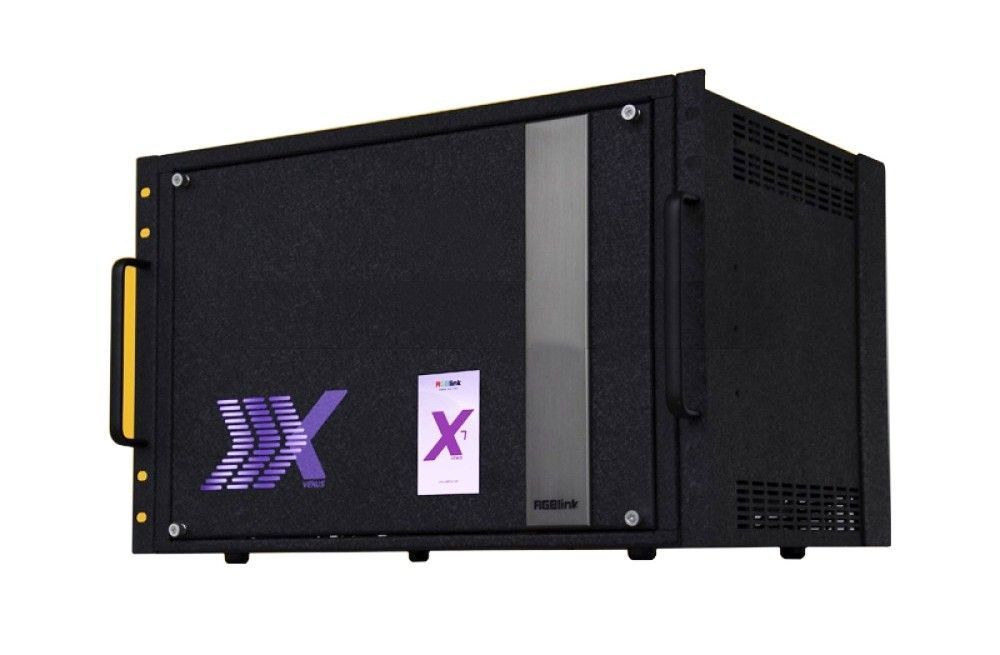

RGBLink VENUS X7 Splicing LED Video Processor Features:
●Seamless switching 32 x 32 matrix / router
●Up to 64 mega pixels output splicing
●Display up to 128 layers
●DSK and Chroma Key features
●OSD text overlay feature for subtitling and
messaging

$12,986.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

RGBLink VENUS X7 Splicing LED Video Processor Features:

●Seamless switching 32 x 32 matrix / router

●Up to 64 mega pixels output splicing

●Display up to 128 layers

●DSK and Chroma Key features

●OSD text overlay feature for subtitling and

messaging

●Wide range of SmartSlot™ modules for input and

output

●Redundant hot swap power supply option

●Auto temperature control

●Genlock built-in

●Support scheduled power off/on and remote

activation

●Windows ® and Apple OS X® native software

applications

RGBLink VENUS X7 Splicing LED Video Processor Parameter:

Specification
Connectors	Input	8 slots, up to 32 inputs, select from below modules
		4K@60	1 x DVI-I \| 2 x HDMI-A \| 1 x DP
		12G SDI	4 x BNC (1 x 12G/6G SDI or 4 x 3G SDI)
		4K@30	2 x DVI-I \| 2 x HDMI-A (1 In/1 Loop) \| 2 x DP (1 In/1 Loop)
		3G SDI	8 x BNC (4 In \| 4 Loop)
		HDMI 2K	4 x HDMI-A
		DVI	4 x DVI-I
		H.264	4 x RJ45
		HDBaseT	4 x RJ45
		VGA	4 x DB15
		CVBS	8 x BNC (4 In/4 Backup)
		USB	4 x USB-A
	Output	8 slots, up to 32 outputs, select from below modules
		HDMI 4K	2 x HDMI-A
		3G SDI	4 x BNC
		DVI	4 x DVI-I
		HDBaseT	4 x RJ45
		HDMI 2K	4 x HDMI-A
		H.264	4 x RJ45 \| 2 x HDMI-A
		ARO Rotation	4 x DVI-I
	Communication	LAN	1 x RJ45
		RS232	1 x DB9
		USB	1 x USB-A
		WIFI Antenna	1 x RP-SMA
		Genlock/Sync	2 x BNC (1 In/Loop) \| 1 x HDMI-A
	Power	2 slots (1 PSU fitted as standard)
	Power		1 x IEC (Each PSU)
Performance	Input Resolutions	SDI
		SMPTE	480i\| 576i \| 720p@23.98/24/25/29.97/30/50/59.94/60 \| 1080i@59.94/60 \| 1080p@23.98/24/25/29.97/30/50/59.94/60 \| 1080psf@23.8/24/25/29.7/30 \| 2160p@23.98/24/25/29.97/30/50/59.94/60
		DVI
		SMPTE	720p@23.98/24/25/29.97/30/50/59.94/60 \| 1080p@23.98/24/25/29.97/30/50/59.94/60\| 1080psf@23.8/24/25/29.7/30 \| 2160p@30
		VESA	800x600@60 \| 1024x768@60 \| 1280x768@60 \| 1280x960@60 \| 1280x1024@60 \| 1360x768@60 \| 1440x900@60 \| 1400x1050@60 \| 1600x1200@60 \| 1680x1050@60 \| 1920x1080@60 \| 2048x1080@60 \| 2048x1152@60 \| 2560x960@60 \| 3840x2160@30
		HDBaseT
		SMPTE	720p@50/60 \| 1080p@24/25/30/50/60\|
		VESA	800x600@60/75/85 \| 1024x768@60/75/85 \| 1280x768@60 \| 1280x800@60 \| 1280x1024@60/75/85 \| 1360x768@60 \| 1366x768@60 \| 1400x900@60 \| 1400x1050@60 \| 1600x1200@60 \| 1680x1050@60 \| 1920x1080@60 \| 1920x1200@60 \| 2048x1152@60 \| 2560x812@60 \| 2048x816@60
		VGA
		VESA	800x600@60 \| 1024x768@60 \| 1280x960@60 \| 1280x1024@60 \| 1360x768@60 \| 1400x1050@60 \| 1440x900@60 \| 1600x1200@60 \| 1680x1050@60 \| 1920x1080@60
		CVBS
		SMPTE	480i \| 576i
		H.264
			176x144 \| 240x180 \| 320x180 \| 320x240 \| 320x256 \| 352x228 \| 352x480 \| 400x224 \| 400x320 \| 480x270 \| 480x272 \| 480x320 \| 480x360\| 480x480 \| 544x480 \| 608x448 \| 640x360 \| 640x480 \| 704x576 \| 720x404 \| 720x480 \| 720x540 \| 720x576 \| 850x480 \| 1024x576 \| 1280x720 \| 1680x1056 \| 1920x1080
		HDMI \| DisplayPort
		SMPTE	720p@23.98/24/25/29.97/30/50/59.94/60 \| 1080p@50/59.94/60 \| 2160p@30/60
		VESA	800x600@60 \| 1024x768@60 \| 1280x768@60 \| 1280x800@60 \| 1280x1024@60 \| 1360x768@60 \| 1366x768@60 \| 1400x900@60 \| 1600x1050@60 \| 1600x1200@60 \| 1680x1050@60 \| 1920x1080@60 \| 1920x1200@60 \| 2048x1080@60 \| 2048x1152@60 \| 2560x812@60 \| 2560x960@60 \| 2560x1600@60 \| 3840x1080@60 \| 3840x2160@30 \|3840x2160@60

	Output Resolutions	Select from below or configure customized SDI
		SMPTE	720p@23.98/24/25/29.97/30/50/59.94/60 \| 1080p@23.98/24/25/29.97/30/50/59.94/60 \| 1080psf@23.8/24/25/29.7/30
		DVI \| HDBaseT
		SMPTE	720p@50/59.94/60 \| 1080p@50/59.94/60
		VESA	800x600@60 \| 1024x768@60 \| 1280x800@60 \| 1280x960@60 \| 1280x1024@60 \| 1360x768@60 \| 1440x900@60 \| 1400x1050@60 \| 1600x1200@60 \| 1680x1050@60 \| 1920x1080@60 \| 2048x1152@60
		H.264
			176x144 \| 240x180 \| 320x180 \| 320x240 \| 320x256 \| 352x228 \| 352x480 \| 400x224 \| 400x320 \| 480x270 \| 480x272 \| 480x320 \| 480x360\| 480x480 \| 544x480 \| 608x448 \| 640x360 \| 640x480 \| 704x576 \| 720x404 \| 720x480 \| 720x540 \| 720x576 \| 850x480 \| 1024x576 \| 1280x720 \| 1680x1056 \| 1920x1080
		HDMI
		SMPTE	720p@25/30/50/60 \| 1080p@23.98/24/25/29.97/30/50/59.94/60 \| 2160p@23.98/24/25/29.97/30/50/60
		VESA	800x600@60 \| 1024x768@60 \| 1280x768@60 \| 1280x800@60 \| 1280x1024@60 \| 1360x768@60 \| 1366x768@60 \| 1400x900@60 \| 1600x1050@60 \| 1600x1200@60 \|1680x1050@60 \| 1920x1080@60 \| 1920x1200@60 \| 2048x1152@60 \| 2560x812@60 \| 2560x816@60 \| 2560x1600@60 \| 3840x1080@60 \| 3840x2160@ \| 4096x2160@60
	Supported Standard	SDI	SMPTE ST 2082-1 \| SMPTE ST 2081-1 \| SMPTE ST 424 \| SMPTE ST 292-1 \| SMPTE ST 259 \| DVB-ASI \| MADI
		HDMI	2
		DP	1.2
		DVI	Dual Link
		HDBaseT	1
	Grey Level	12bit
	Color Space	04:04:04
Power	Input Voltage	AC 100V~240V, 50/60HZ
Power	Max Power	400W
Environment	Temperature	0°C ~ 55°C
Environment	Humidity	10% ~ 90% RH
