Model:P8-OF4S-SMD3535-40x40 Brightness:≥6500CD/㎡ Power consumption:78W Viewing angle:H:120°,V:120° Product description: P8 SMD3535 outdoor, reliable Nationstar SMD3535, high resolution outdoor front service LED display solution.

$35.62

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

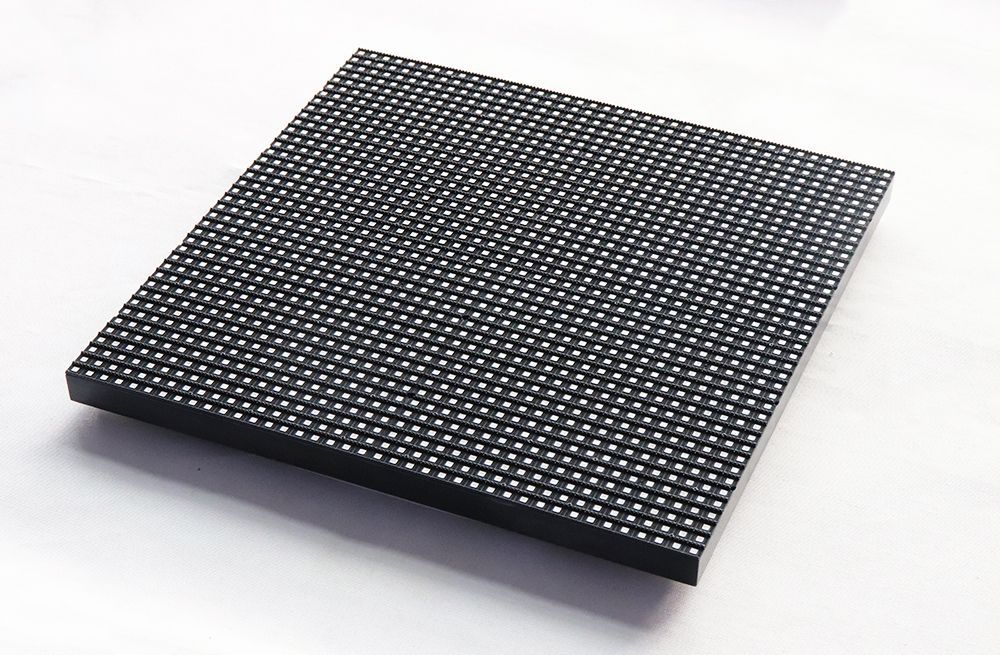

Features of P8 SMD3535 320x320mm Outdoor Dual Maintenance LED Module:

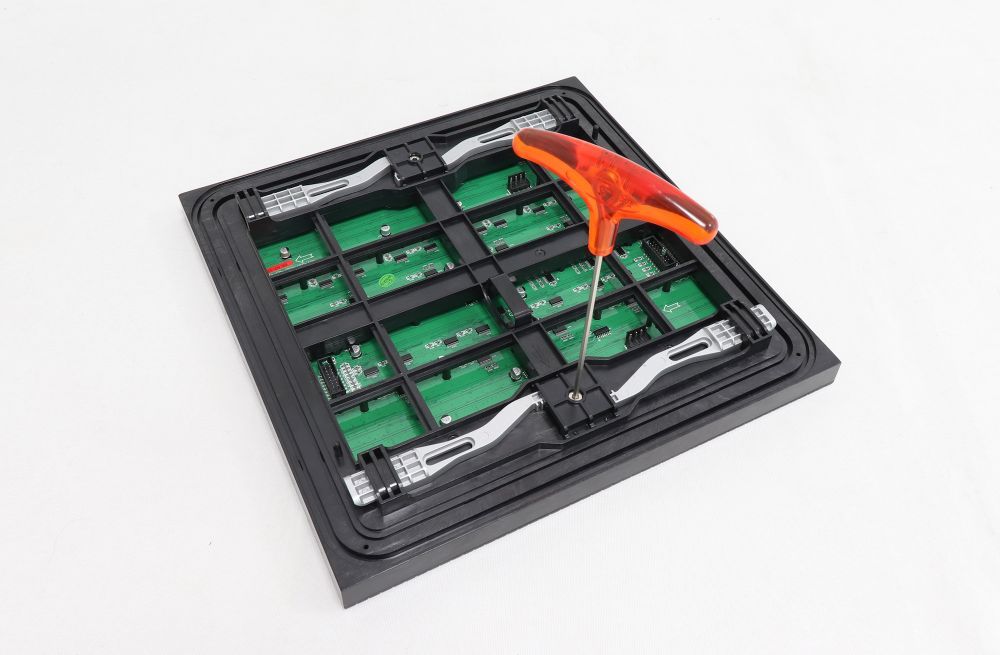

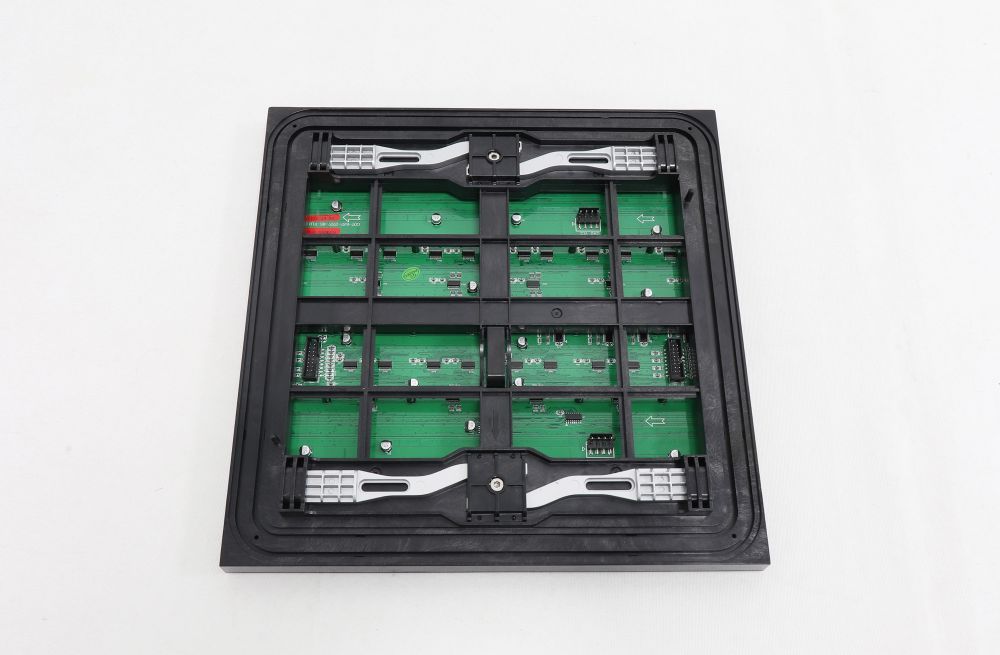

1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

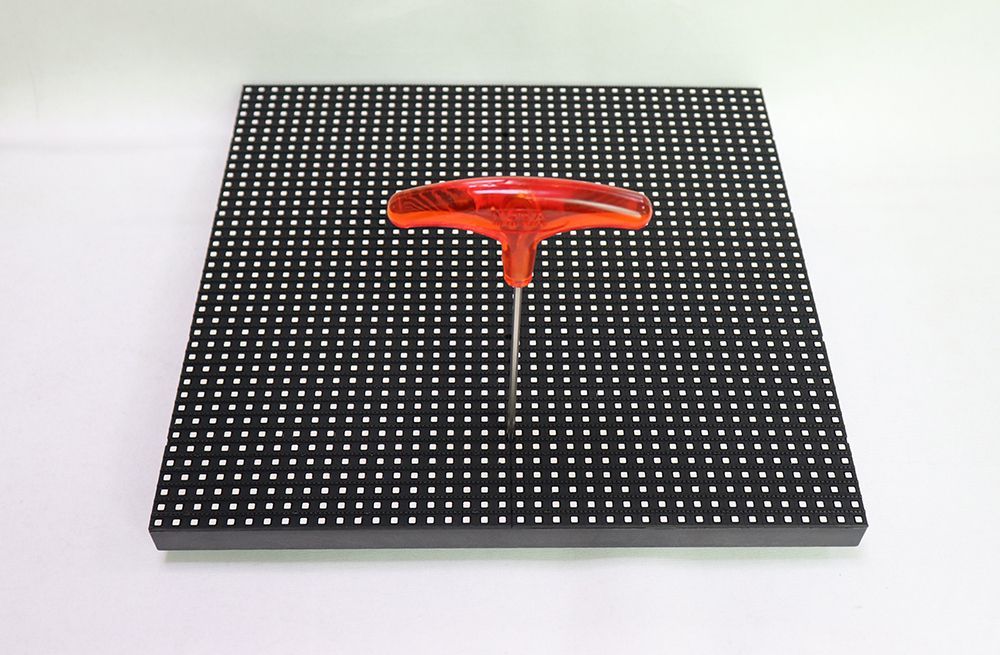

2) Easy maintenance, easy to take the modules with a 4mm hexagonal screwdriver.

3) No screws, easier to take the modules and mount the modules on the cabinet.

4) 8mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.

5) New plastic cover with new mold, smaller module gaps and better screen flatness.

6) Reasonable PCB design, reliable and long life time.

Applicable situations of P8 SMD3535 Outdoor Dual Maintenance LED Module:

Outdoor LED signs requiring front maintenance

Commercial video screens with small sizes

Double face LED signs

Small LED banner signs

Outdoor rental LED screen requiring fast maintenance

PCB Versions of P8 SMD3535 Outdoor Dual Maintenance LED Module:

P8U4S-3535RGB40X40-Y1302-SWH

Parameters of P8 SMD3535 Outdoor Dual Maintenance LED Module:

Item	Specification
LED type	SMD3535
Pixel pitch	8mm
Pixel configuration	1R1G1B
Module Size	320x320mm
Module resolution	40x40pixels
Density	15,625 pixels/ ㎡
Driving Mode	1/4 duty
Brightness	≥6500CD/ ㎡
Viewing angle	H:120°, V:120°
Best viewing distance	8m---80m
Working voltage	5V
Power consumption	78W
Module weight	2.5KG
>Protection grade	Front: IP65
Working Temperature	-20 ～60℃

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.

2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.

3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.

4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.

5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.

6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.

7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.

8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.

9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.

10. The products ordered will not enjoy return and warranty if their codes are ripped off.

11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.
