MX20 is a two-in-one control service under the new control system COEX series of Xi'an Nova Nebula Technology Co., Ltd. (hereinafter referred to as It integrates video processing and control functions, with 2 HDMI1.3, 1 3G-SDI input interface, 6 output network ports and 2 10G optical fiber interfaces.Supports the new visual management platform VMP to provide users with a better control experience.

$1,105.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

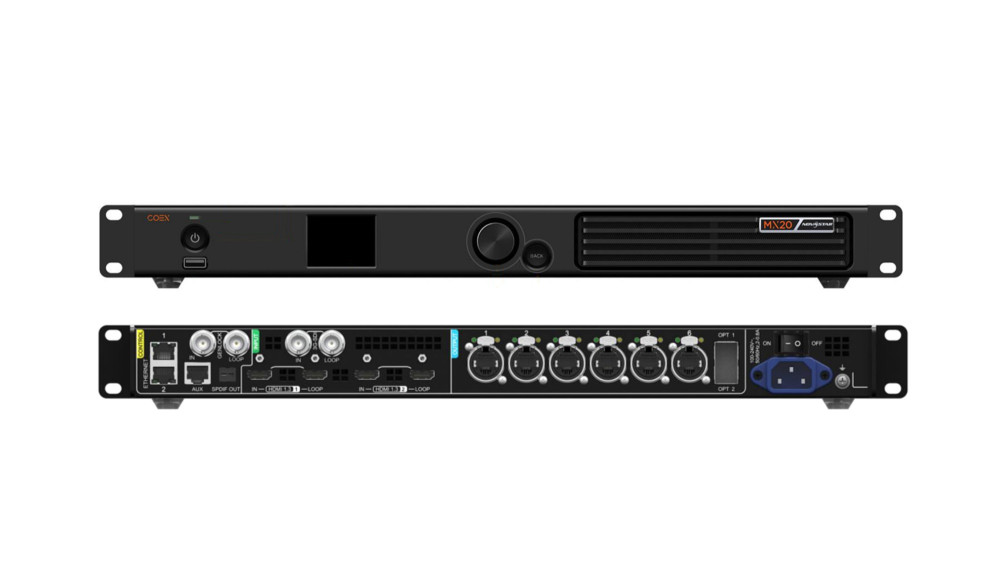

Novastar MX20 video control server Features：
input Output

2 types of video input interfaces

− 2×HDMI 1.3 (with loop output)
− 1×3G-SDI (with loop output)

10bit/8bit video source input
3 types of output interfaces

− 6×Gigabit network ports, with a maximum load of 3.9 million pixels
− 2×10G optical port
− 1×SPDIF digital audio interface

3 types of control interfaces

− 1×Genlock synchronization signal input (with loop output)
− 2×Ethernet Ethernet control network port
− 1×AUX auxiliary interface

Advanced features

3 independent layers

Supports adding up to 3 layers and adjusting them according to Z order priority.

Screen zoom

Supports 4 screen zoom modes, including custom, point-to-point, screen
The cloth tiles and covers the screen.

Color calibration

Supports 12-channel standard color processing derived from black and white and RGB three primary colors.
Precisely adjust hue, saturation and brightness.

Full grayscale correction

With the Nova Nebula high-precision correction system and C3200 scientific-grade phase
The machine generates its own correction coefficient for each gray level to ensure that every
The uniformity of one level of gray scale significantly improves the display quality.

Delay

− Supports low latency and can achieve low latency without reducing load. independent
In master control mode, 0 frame delay on the controller side (less than 1ms),
In video controller mode, there is a 1 frame delay on the controller side.
− Supports additional frame delay, the controller can add 0 to 2 frame delays Late.

No rectangular frame restrictions

There is no rectangular frame limit when building a special-shaped screen. Leaving it blank does not count as loading. The network port
The load calculation is the sum of the pixels of all screen cabinets.

Frame rate adaptation

Adapt to various video input frame rates, including decimal frame rates. Support
User-defined frame rate and supports fine frame rate adjustment in 0.01Hz steps
Festival.

Two equipment working modes

Supports two working modes: video controller and independent master control.
− In independent master mode, one frame delay can be reduced.
− In video controller mode, you can use functions such as multi-layer and zoom able.

Display system monitoring

Support equipment status monitoring and display status monitoring, and automatically report
Fault and warning information.

Specification Download：

Novastar MX20 video control server Specification

Manual Download：

Novastar MX20 video control serverManual
