Mctrl1600 send controller is a 4K×2K independent master developed by Nova Technology. The single device supports 3840×2160@60Hz.Users can customize the resolution according to their needs within this range to meet the on-site configuration requirements for ultra-long and large screens.

~~$1,400.00~~ $1,065.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

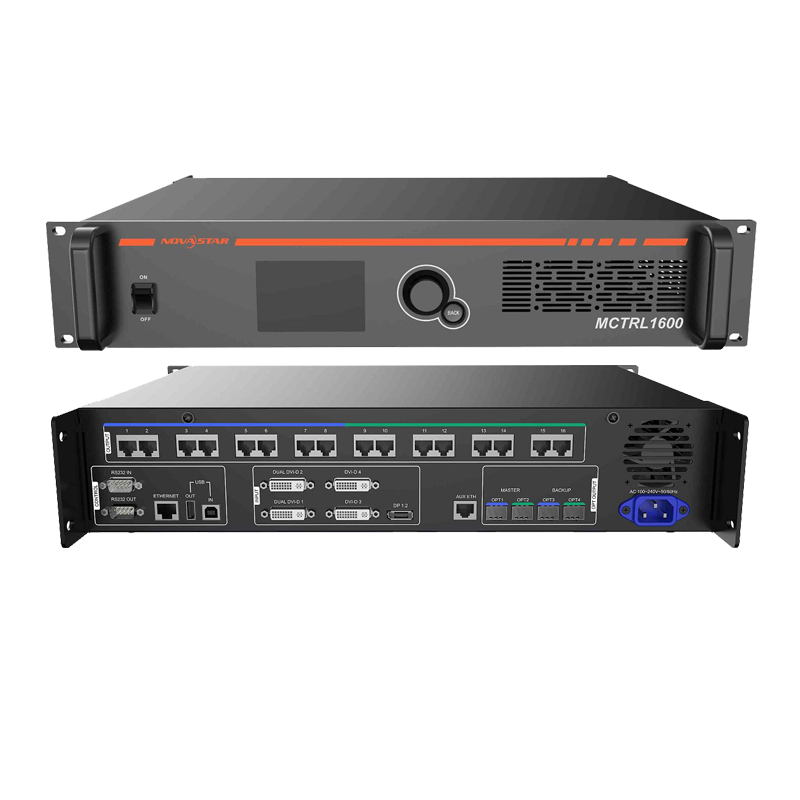

Novastar MCTRL1600 4Kx2K LED Display Controller information:

1).1 x DP1.2 input, 4 x DVI input.
2).Resolution: 4096×2160, 3840×2160, 1920×1080.
3).16 gigabit network port output and 4 optical fiber port output.
4).8 bit/10bit/12bit video source depth
5).Point-by-point correction .
6).Cascade multiple equipment for unified control.
7).Support sending card mode and photoelectric conversion mode switch.
8).3D function, with 3D transmitter EMT200 and matching 3 glasses.
9).Supports large resolution settings through NVIDIA computer graphics cards.
10).Supports RGB independent adjustment (input source number 10 bit/12bit), to solve the low gray unevenness and white balance drift problem.

Mctrl1600 send controller is a 4K×2K independent master developed by Nova Technology. The single device supports 3840×2160@60Hz.Users can customize the resolution according to their needs within this range to meet the on-site configuration requirements for ultra-long and large screens.

The Mctrl1600 video wall player supports both transmit card mode and photoelectric conversion mode to provide a flexible solution.In the send card mode, the unit can be used as two independent (DUAL LINK DVI) or four (SINGLE LINK DVI) independent masters.

Mctrl1600 works with Nova’s EMT200 3D transmitter and 3D glasses to achieve 3D display.

Mctrl1600 led box is stable, reliable and powerful. It is dedicated to providing users with the ultimate visual experience. It is mainly used in rental and fixed areas, such as concerts, live broadcast evenings, monitoring centers, Olympics, stadiums and sports centers.

Electrical Parameters	Input voltage	AC 100 V–240 V, 50/60 Hz
	Rated power consumption	30 W
Operating Environment	Temperature	-20°C–70°C
	Humidity	0% RH–90% RH, non-condensing
Dimensions	482.6 mm × 363.0 mm × 88.1 mm
Space Requirement	2U
Net Weight	5.2 kg
Certifications	CB, RoHS, EAC, FCC, UL/CUL, LVD, EMC, KC, CCC, PSE
Packing Information	Each controller is provided with a carrying case, accessory box and packing box. The controller and accessory box (containing controller related wires and accessories) is packed in the carrying case and the carrying case is packed in the packing box.
	Carrying case	530 mm ×193mm ×420 mm, kraft paper box printed with NOVASTAR
	Accessory box	405 mm×290 mm × 48 mm, kraft paper box one power cord one USB cable one DVI cable
	Packing box	550 mm × 440 mm × 210 mm, kraft paper box printed with NOVASTAR
