Overview

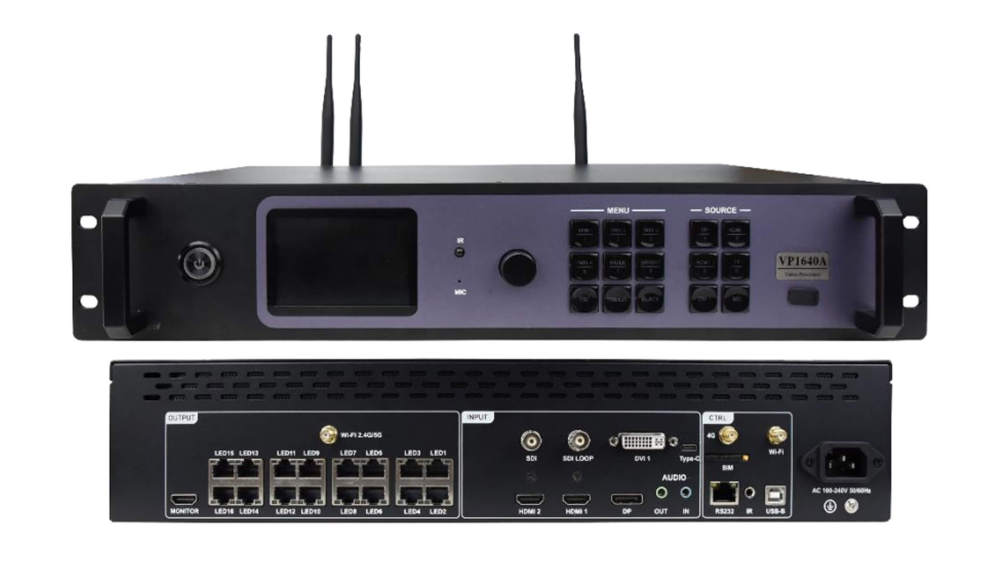

HD-VP1640A is a two-in-one video processor for LED display, which integrates 16 Gigabit Ethernet port outputs and supports four-screen display. It has 7 channels of synchronous signal input, supports up to 4K video signal input (some interfaces), and can switch between multiple synchronous signals at will. It can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback. At the same time, VP1640A is equipped with Wi-Fi function as standard, and supports mobile APP wireless control.

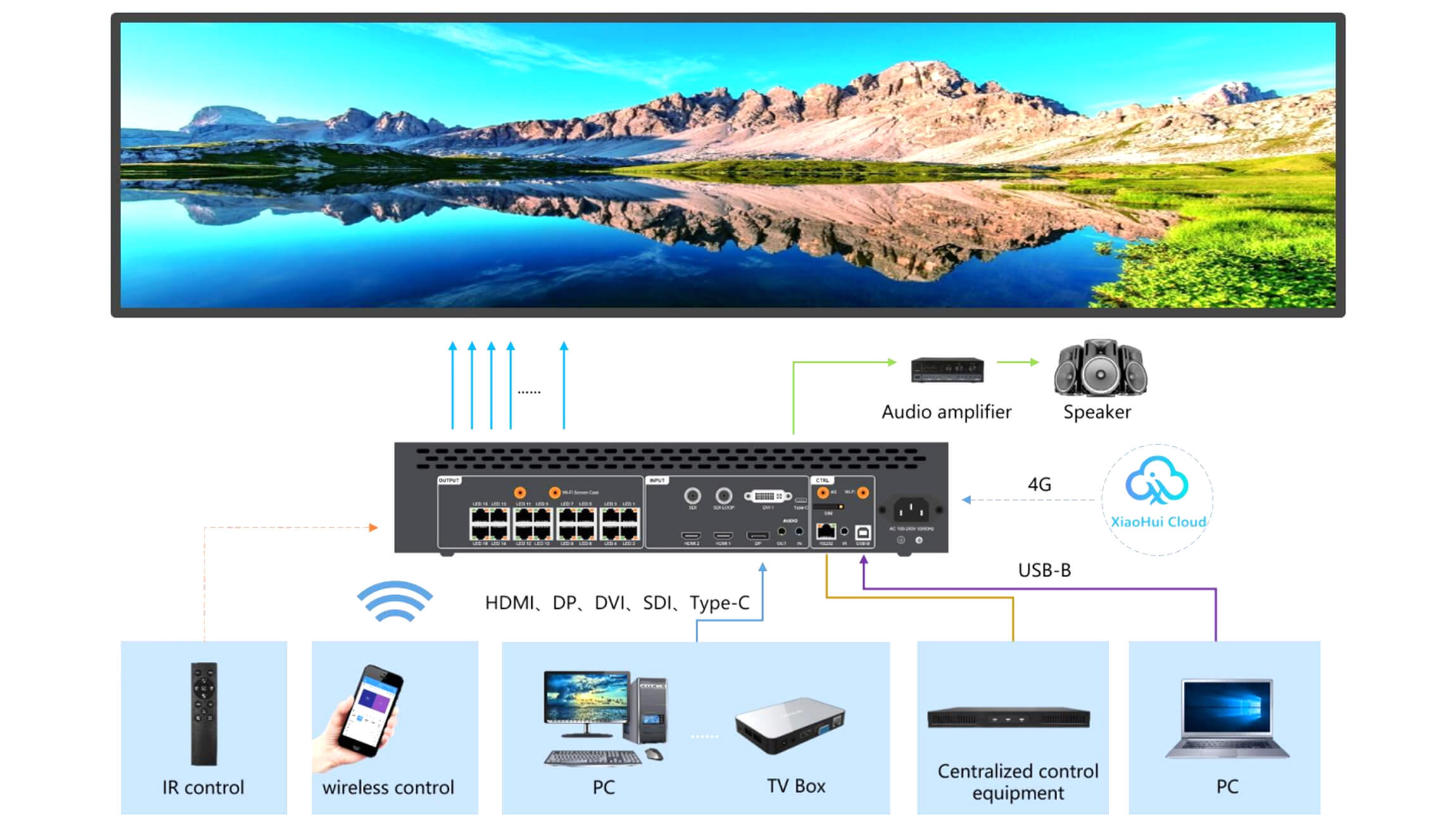

Connection Diagram

Features

Input:
 Support 1 channel of DP/1 channel of Type-C (both cannot be used at the same time), 1 channel of HDMI2.0, 2 channels of HDMI1.4 (or 1 channel of HDMI1.4 + optional 1 channel of projection), 2 channels of DVI (Or optional 1-way DVI + 1-way SDI input and loop out) signal input, multiple video signals can be switched arbitrarily.
 Support 1 TRS 3.5mm standard two-channel audio input and HDMI/DP audio input.
Output:
 Standard configuration of 16 Gigabit Ethernet ports, directly cascaded to the receiving card.
 1 SDI LOOP interface (optional).
 The maximum control is 10.4 million pixels, the maximum horizontal support is 16000 pixels, and the maximum vertical support is 4000 pixels.
 1 TRS 3.5mm standard two-channel audio output.
Function:
 Support 4K@60Hz synchronous signal input, point-to-point display.
 Support four-screen display, support any layout of the screen.
 Support 8 scene presets and calls.
 Standard Wi-Fi, support mobile phone APP wireless control.
 Support brightness adjustment and key lock function.
 Support mobile phone/tablet wireless projection.

Specification Download:
Huidu HD-VP1640A 2-in-1 video processor Specification
