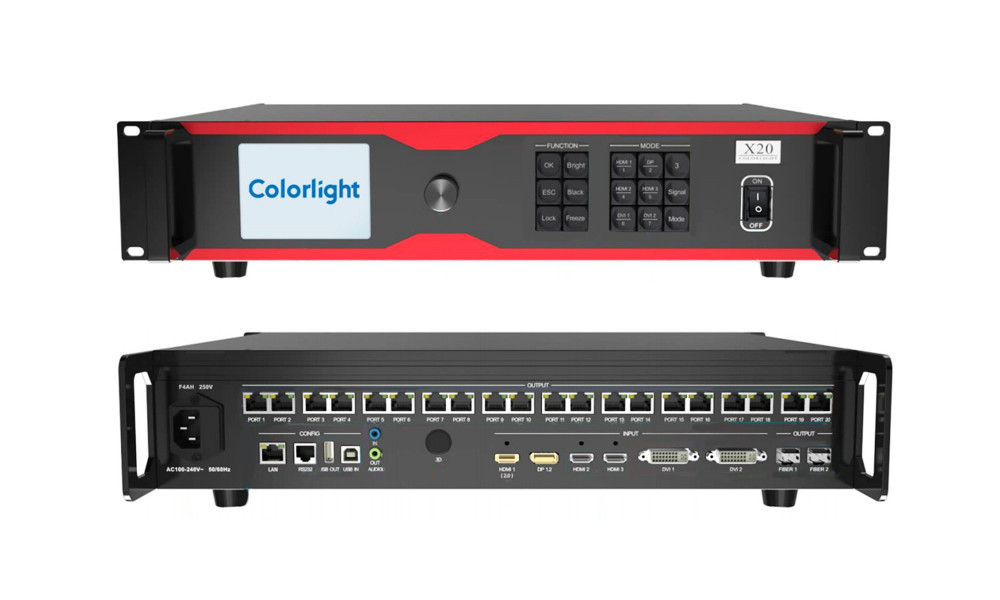

Name: Colorlight X20 Controller for LED Display screen
Brand: Shopping LED Screen controller Video processor power supply
SKU: Colorlight X20
Price: 1525 USD
Availability: InStock

SKU: Colorlight X20

X20 is a super 4K LED video controller with powerful video signal input and processing capabilities. The device supports 4K and 2K video signal input, with a loading capacity of up to 13 million pixels. It has two output modes: network port output or optical port output, which can greatly meet the needs of different customers. At the same time, X20 has a series of rich and practical functions, which can provide flexible screen control and high-quality image display.

$1,525.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Colorlight X20 Controller for LED Display screen Features：

enter
●The maximum input resolution is 4096X2160@60Hz
●2-way 4K input: 1X DP1.2, 1X HDMI2.0
Small V
●4-way 2K input: 2X HDMI1.4, 2X DVI

output
●Maximum carrying capacity of 13 million pixels, maximum width of 16384 pixels, or maximum of 8192 pixels
●20-way Gigabit Ethernet port output or 2-way 10-Gigabit optical port output, choose one
audio
●1 channel independent audio input
●1 channel independent audio output
●HDMI and DP audio analysis output

Function Description
●Maximum 6 windows display, each window has 1 layer, and the layers overlap each other (when there is 1 channel of 4K input signal, it can
●Support 4 channels of high-definition input, support 5 windows; when 2 channels of 4K input signals, only support 2 windows)
●Window free roaming, free zooming window, minimum 64X 64 resolution
●Video signal can be cropped arbitrarily, switched seamlessly, the size of the cropping frame can be adjusted freely, and the minimum resolution is 64X64
●Precise color management, adjustable display color gamut, need the support of corresponding model receiving card
●Video genlock technology, support locking internal vsync, input signal source, automatic genlock (lock according to layer)
●Brightness and color temperature adjustment, support accurate color temperature
●3D (optional)
●Low brightness and high gray, can effectively maintain the complete display of gray scale under low brightness
●Support 16 scenes to save and recall

control
●USB interface control and cascading
●RS232 serial protocol control
●LAN port control
●Mobile APP control

Specification Download:

Colorlight X20 Controller for LED Display screen Specification
